DMG

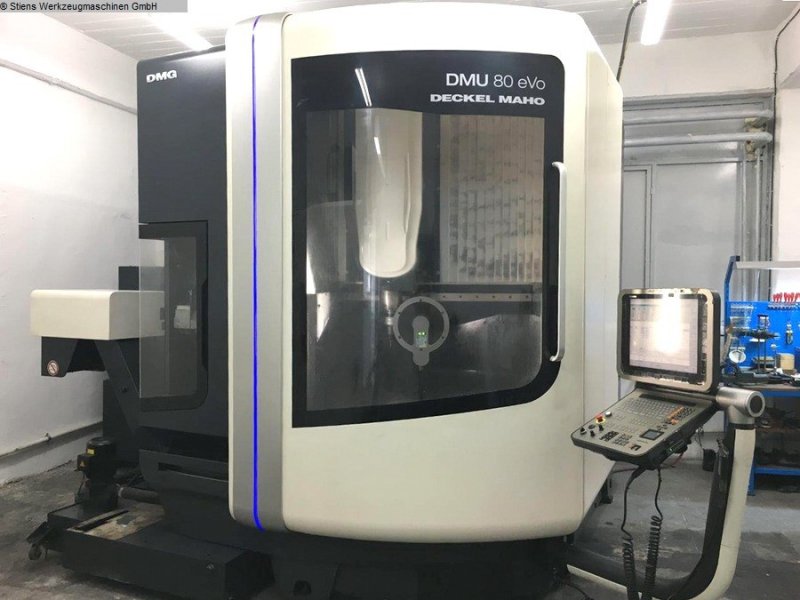

DMG DMU 80 eVolution
NOVÝ
Základní parametry stroje
Výrobce: DMGRok výroby: 2011
Řídící systém: Heidenhain
| x-travel | 800mm |
| y-travel | 650mm |
| z-travel | 550mm |

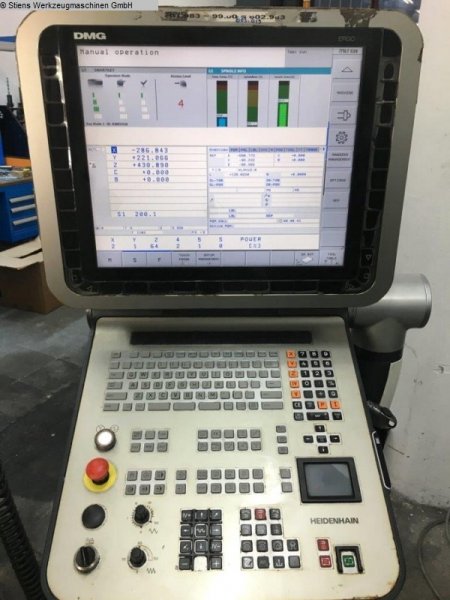

| control | iTNC 530 Heidenhain |
| distance spindle nose and table | 150 - 700mm |

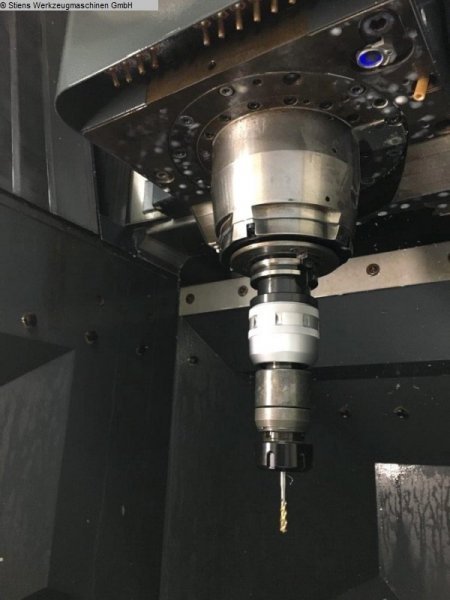

| Main spindle: | |
| turning speed range - main spindle | max. 18.000min/-1 |
| power capacity - main spindel | 35 / 25kW |
| max. Torque | 130Nm |
| tool taper | SK 40 |
| NC-Tilting round table: | |
| table surface area | 800 x 700mm |
| max. table load | 600kg |
| rotatable | C: 360° |
| Swivel range | B: -5 / -110° |
| tool magazin: | |
| number of toolpositions | 30pos. |
| tool taper | SK 40 |
| max. tool diameter | 80mm |
| max. tool-dia with free toolbox | 160mm |
| max. tool length | 315mm |
| max. tool weight | 8,0kg |
| change-time chip to chip | ca. 5,9sec |
| feeds: | |
| feed speeds | max. 30.000mm/min |
| rapid traverse | 80m/min |
| total power requirement | 50kW |
| weight of the machine ca. | 12,0t |
| dimensions of the machine ca. | 4,5 x 4,0 x 2,5m |
